Product highlights:

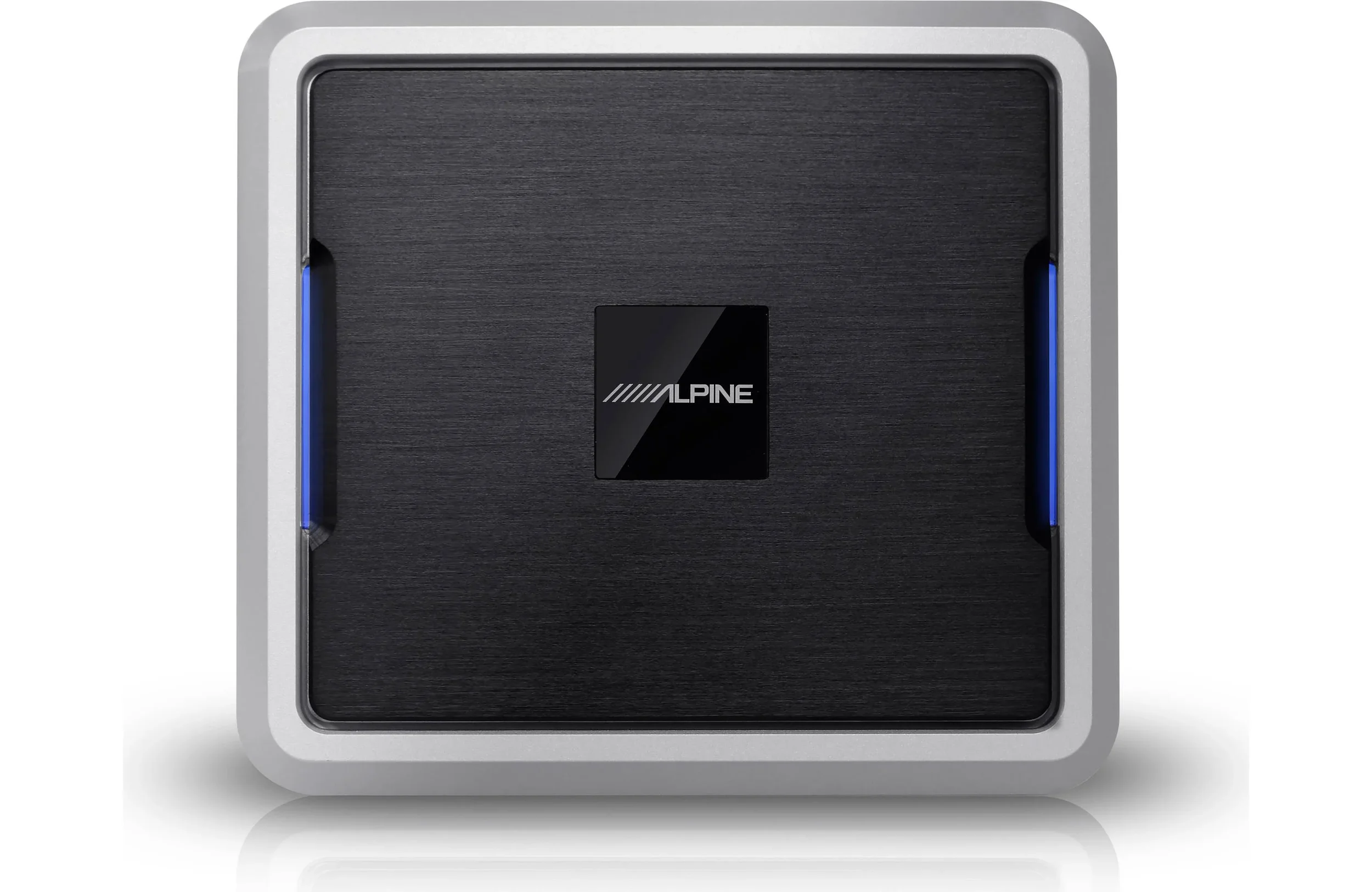

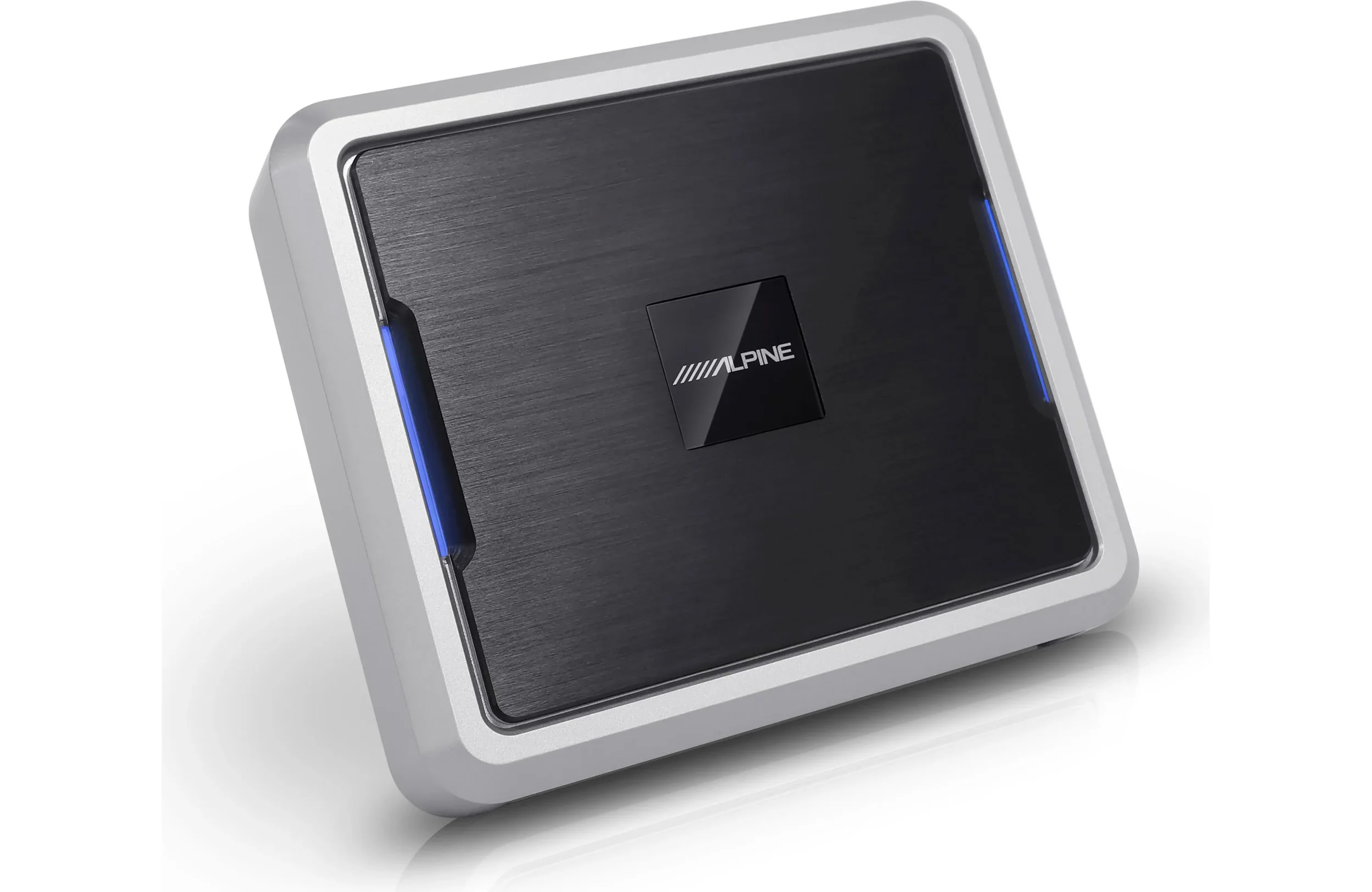

8-channel car amplifier with digital signal processing
25 watts RMS x 8 at 4 ohms
DSP adjustments and settings made via Bluetooth device, Windows PC via USB, or wired remote
download PXE-DSP-APP for iOS or Android device from the Apple APP or Google Play Store
download PXE-DSP-APP for Windows at Alpine.com

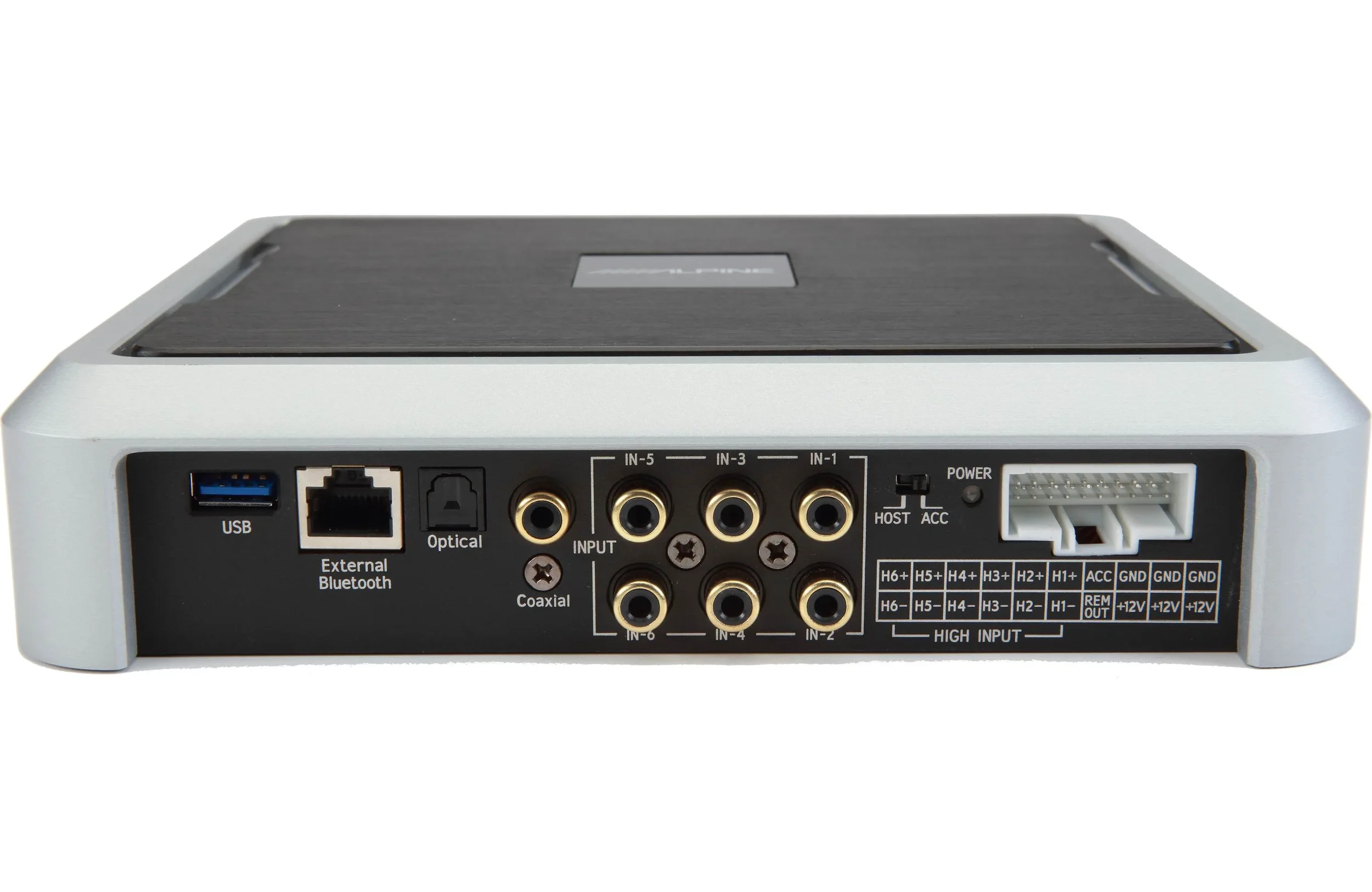

inputs: 6 assignable preamp and speaker-level
outputs: 12 processed channels (RCA)
Adjustment Details:
12-channel 32-bit 300 MHz digital processor
31-band EQ with fine tuning
adjustable high-, low-, and band-pass filters (20-20 KHz)
selectable filter slopes (12, 18, 24, 30, 36, 42, 48 dB/octave)
selectable filter characteristics (Butterworth, Bessel, and Linkwitz-Riley)
delay: 0-20 milliseconds (0-273")
phase adjustment: 0 or 180°
Other Features:

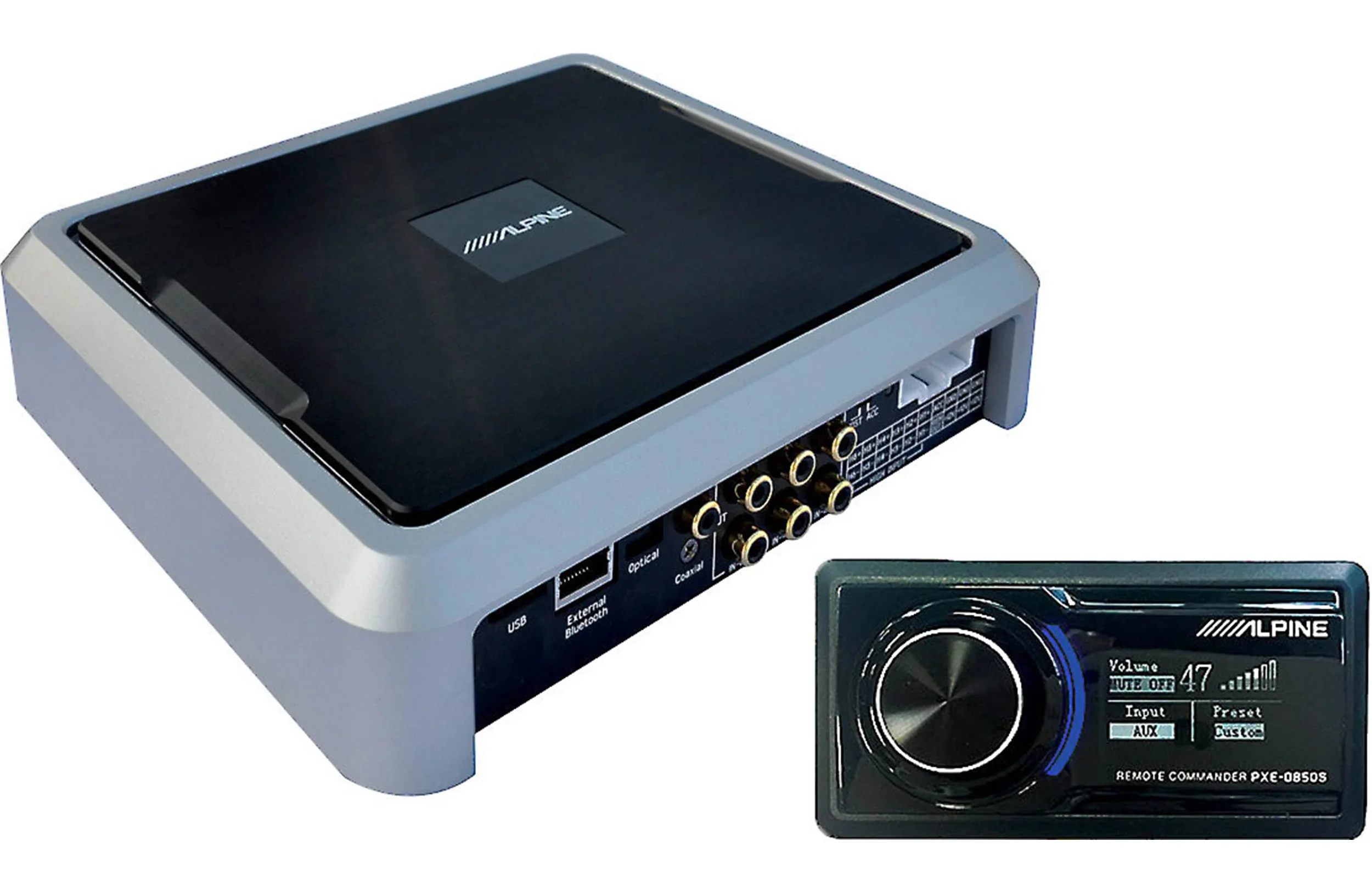

includes wired LCD remote control, Bluetooth adapter, and USB cable
remote dimensions: 3-1/2"W x 1-3/4"H x 3/4"D (1-11/16"D with knob)
fuse rating: 20A x 1
wiring and hardware not included with amplifier
10-gauge power and ground leads recommended
dimensions: 8-5/16"W x 1-7/8"H x 7-1/2"D
