Class D Digital Full Range Amplifier
Full MOSFET PWM Power Supply
SMD Technology on Double Sided PCB

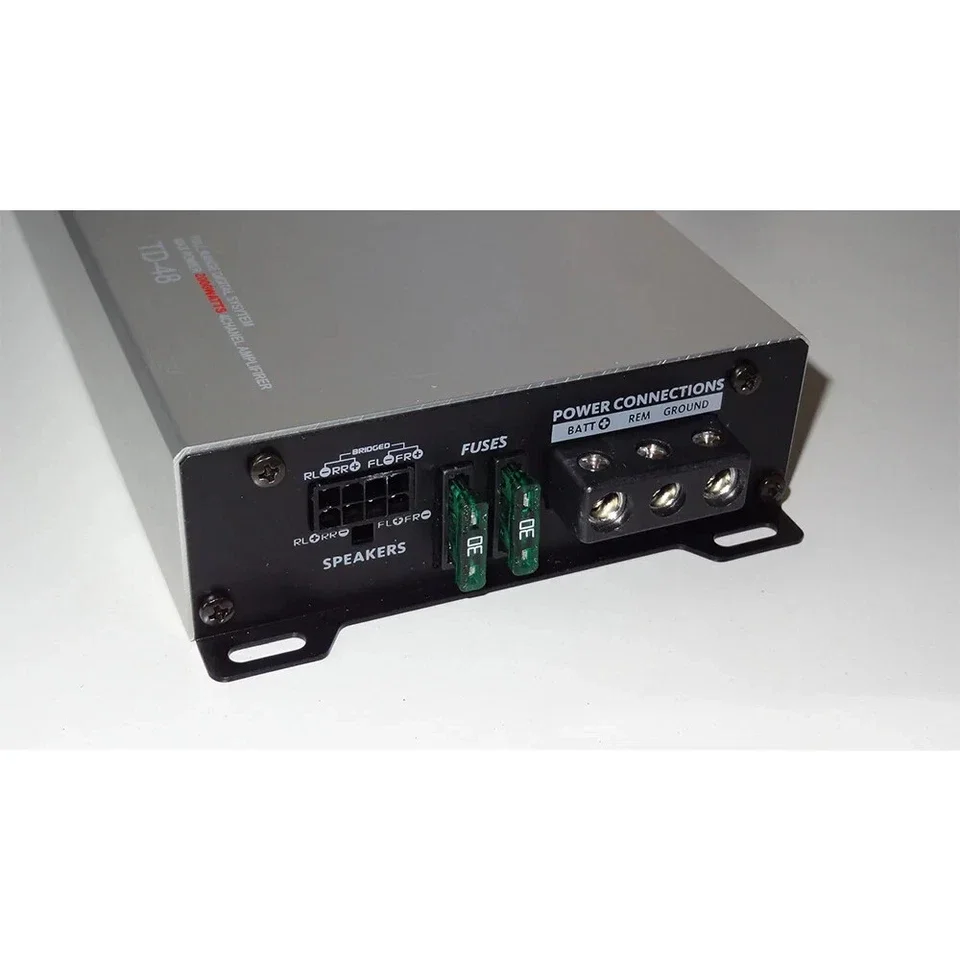

8ga Power Terminals & 12ga Speaker Outputs

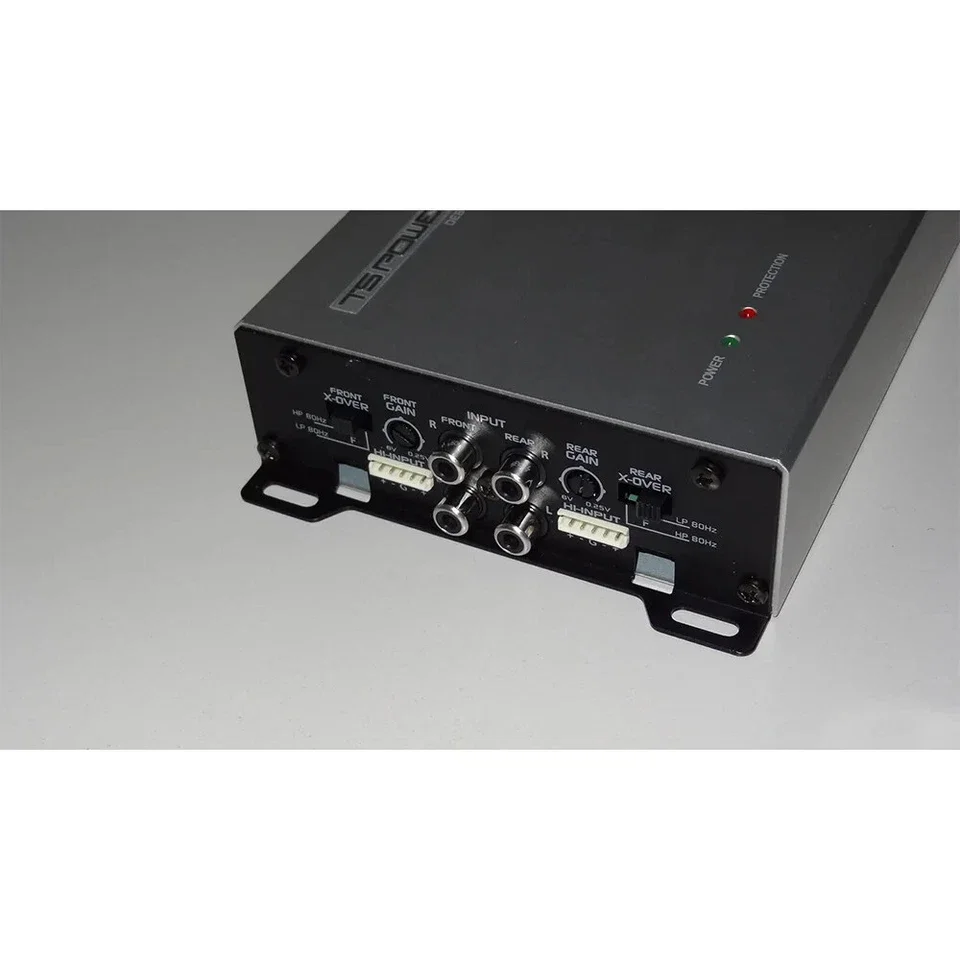

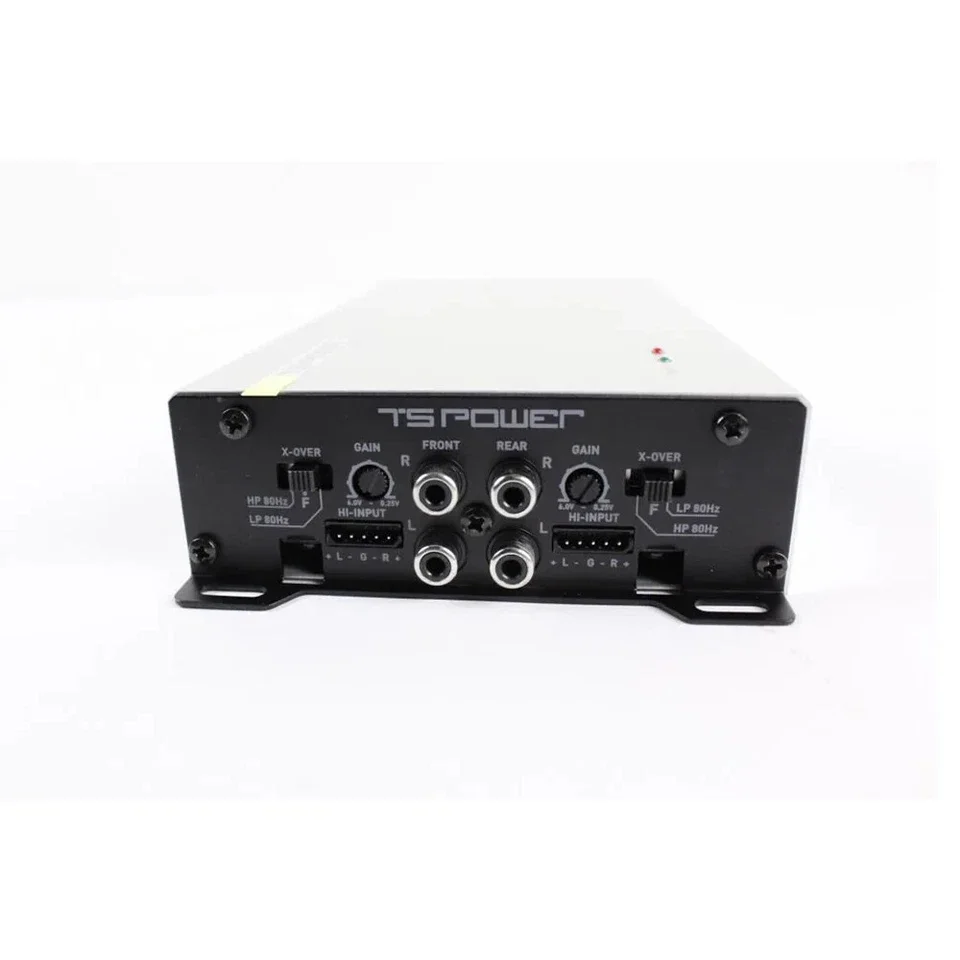

High & Low Level Signal Inputs
Selectable 80Hz 12dB High/Low Pass Filter
2-Ohm Stereo, 4-Ohm Bridged Stable
160w x 4 @ 4-ohm Stereo
250w x 4 @ 2-ohm Stereo
500w x 2 @ 4-ohm Bridged
Total Harmonic Distortion: 0.5%
Frequency Response: 10-35kHz
Signal-to-Noise Ratio: 70dB
Damping Factor: > 250
Stereo Channel Separation: <55dB
Input Sensitivity: 200mV-6V
Dimensions: 4.75"w x 1.5"h x 9"l
